Spherical Concave Mirror

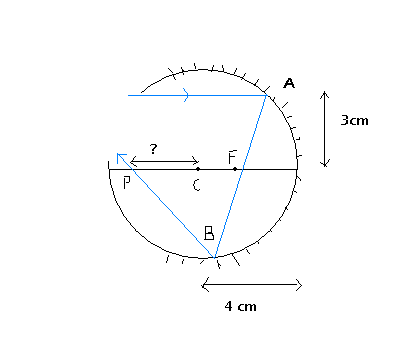

A spherical concave mirror (not parabolic) has a radius of 4 cm on which a ray is incident 3 cm from the principle axis, as shown in the figure. Since the mirror is not parabolic the ray doesn’t pass through the focus. After reflection on A and then on B, the ray crosses the principal axis at point P. Find the distance of P from C.

*The answer should be according to the following convention:
If the ray passes the principle axis left of C the distance is positive, else negative.
rickrishav is offline   Reply With Quote
Old Feb 13th 2011, 09:42 AM   #2
Senior Member

Join Date: Dec 2008
Location: Udupi, Karnataka, India
Posts: 292
Draw CD perpendicular to the parallel ray. Join CA and CB. Let ACF line intersects AB at E.
Now CD = 3 cm and CD = 4 cm. Let $\displaystyle \angleDAC$ be θ. So sinθ = 3/4.
Now angle DAC = CAF = CBF = CBP = θ.
Angle CFB = 2θ. And angle PCB = 3θ.Then angle CPB = 180 - 4θ.
Now use sine rule.
PC/sinθ = CB/sin(180 - 4θ.)
CB = 4 cm. Find PC.
